Among the three metal materials—copper, aluminum, and nickel—copper exhibits the best current-carrying performance, followed by aluminum, with nickel showing the worst. The core basis for this conclusion is the material's conductivity—a key physical quantity measuring a material's ability to conduct electricity. A higher conductivity value means lower resistance when current flows through, lower energy loss, and naturally stronger current-carrying capacity, while also resulting in less heat generation. This performance difference stems not only from the inherent properties of the materials themselves but also directly affects the stability and safety of devices in practical engineering applications.
From the perspective of conductivity (at a standard environment of 20°C, using pure metals as a benchmark), pure copper (such as the commonly used industrial grade T2) has a conductivity of approximately 58 × 10⁶ Siemens/meter, the most outstanding among the three materials. This is due to the high activity of the outer free electrons of copper atoms; its crystal structure offers minimal obstruction to electron flow, and the higher the purity (T2 copper purity ≥ 99.9%), the closer the conductivity is to the theoretical peak value. In comparison, the conductivity of pure aluminum (such as 1060 type, purity ≥99.6%) is approximately 37.7 × 10⁶ Siemens/meter, only about 65% of that of copper. This is because the electron configuration of aluminum atoms naturally makes its conductivity weaker than that of copper, and the content of impurities (such as iron and silicon) further reduces its conductivity. Pure nickel has an even lower conductivity, approximately 14.5 × 10⁶ Siemens/meter, only about 25% of that of copper. Its metallic bond energy is high, resulting in greater resistance to electron migration; even with high-purity nickel (purity ≥99.5%), it is difficult to improve its conductivity. This difference in conductivity directly determines the level of current carrying capacity: under the same cross-sectional area and length, the higher the conductivity of a material, the greater the continuous current it can carry. According to Joule's law (Q=I²Rt), the heat generated by current passing through a conductor is proportional to its resistance. Therefore, copper sheets generate significantly less heat than aluminum and nickel sheets, followed by aluminum sheets, with nickel sheets generating the most heat. For example, when current flows through a 1-meter-long 10mm x 1mm conductor, the resistance of a copper sheet is approximately 0.0034Ω, an aluminum sheet is approximately 0.0053Ω, while a nickel sheet has a resistance as high as 0.0138Ω. Under the same current, the heat generated by the nickel sheet is more than four times that of the copper sheet.
In practical applications, the differences in overcurrent performance among the three materials of the same specifications (same width, thickness, and length) are particularly significant. Taking a 10mm x 1mm strip as an example, under normal heat dissipation conditions (ambient temperature 30℃, natural ventilation), the continuous current carrying capacity of a copper sheet can reach 80A, and the short-term (within 10 seconds) inrush current can even reach 120A. The continuous current carrying capacity of an aluminum sheet of the same specification is approximately 50A, and the short-term inrush current is approximately 75A. Furthermore, after long-term use, due to heat accumulation, metal creep may occur, leading to poor contact. The continuous current carrying capacity of a nickel sheet is only 20A, and the short-term inrush current does not exceed 30A. Exceeding this range, the temperature will rapidly rise to over 100℃, accelerating material oxidation and embrittlement.
It is worth noting that ambient temperature also has a significant impact on current carrying capacity. When the ambient temperature rises to 40℃, the current carrying capacity of the copper sheet decreases by about 10% (to 72A), the aluminum sheet by 15% (to 42.5A), and the nickel sheet by 20% (to 16A), further amplifying the performance differences among the three materials. Furthermore, the installation method of the materials (such as horizontal or vertical placement) also affects heat dissipation efficiency. Vertical placement of copper sheets can increase current carrying capacity by 5%–8%, while aluminum and nickel sheets, due to their weaker heat dissipation capabilities, only see an increase of 3%–5%.
In practical engineering selection, performance requirements, scenario characteristics, and cost factors must be comprehensively considered. Copper sheets, due to their outstanding current carrying capacity, have become the core choice for high-current scenarios and are widely used in new energy vehicle power battery packs, low-voltage distribution cabinet busbars, and high-current interfaces for industrial robots. Their advantages lie not only in high conductivity but also in moderate mechanical strength (tensile strength of approximately 200 MPa, superior to aluminum's 110 MPa) and slow surface oxidation rate (forming a denser copper oxide film, reducing contact resistance), resulting in higher reliability. However, copper has a higher density (8.96 g/cm³) and higher cost (approximately 60,000 RMB/ton), requiring a trade-off in lightweight or low-cost scenarios.
The core advantages of aluminum sheets lie in their low density (2.7 g/cm³, only 1/3 that of copper) and low cost (approximately 20,000 RMB/ton), making them suitable for applications where weight and cost are sensitive and current carrying requirements are not critical. For example, aluminum conductors (mostly aluminum stranded wire with an outer steel core for strength) are used in high-voltage transmission lines, and aluminum alloys are commonly used in the conductive contact lines of rail transit vehicles. However, aluminum also has significant drawbacks: its surface is prone to oxidation (the resulting aluminum oxide film has strong insulation, increasing contact resistance), requiring surface treatments such as nickel plating and conductive adhesive coating to improve stability; and its low mechanical strength makes it easily deformable in vibration environments, typically requiring increased thickness (e.g., for the same current carrying capacity, aluminum sheets need to be 1.5 times thicker than copper sheets) or the use of aluminum alloys such as 6061 (which reduces conductivity to 85% of pure aluminum but increases strength to 180 MPa).

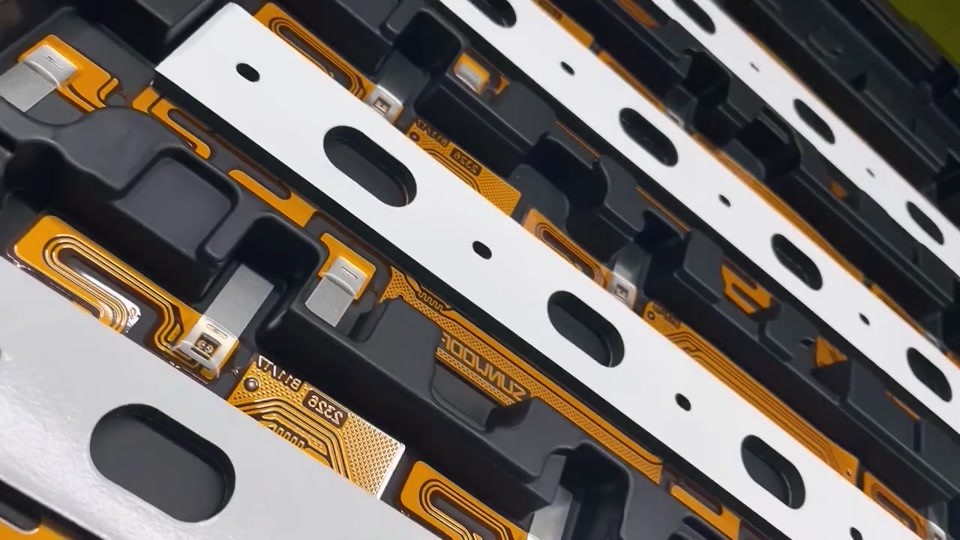

While nickel sheets have poor current carrying capacity, their unique physicochemical properties make them irreplaceable in specific applications. Pure nickel is heat-resistant (melting point 1455℃, far exceeding copper's 1083℃ and aluminum's 660℃), extremely corrosion-resistant (especially in acidic and high-temperature environments), and exhibits excellent weldability with metal casings and electrodes (high-strength connections can be achieved through laser welding). Therefore, nickel sheets are often used in low-current, high-environmental-requirement applications, such as transition connectors between lithium battery tabs and cells (preventing electrochemical corrosion from copper-aluminum contact), lead terminals for high-temperature sensors in aero-engines, and corrosion-resistant conductive components in marine engineering. The core selection criterion is not current-carrying capacity, but rather environmental adaptability.
In summary, the current-carrying performance ranking of the three materials is consistently clear: copper > aluminum > nickel. If simply pursuing current-carrying capacity and stability, copper is the unparalleled optimal solution; aluminum is suitable for scenarios balancing weight, cost, and basic current-carrying requirements; nickel is a functional choice for special environments, and its application value is not directly related to its current-carrying performance. In actual design, the most suitable materials and specifications should be selected based on factors such as specific current rating, ambient temperature, installation space, and cost budget. If necessary, composite structures (such as copper-aluminum composite busbars and nickel-copper transition plates) can be used to meet multiple requirements.
